    ABS Offshore Personnel Transfer Net ( Basket ) HY Series Marine Transfer Device

    Ask Lasest Price
    Brand Name : SEAMAN
    Model Number : SM88384
    Certification : ABS
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 500 pcs Month
    Delivery Time : 10-25 days
    • Product Details
    • Company Profile

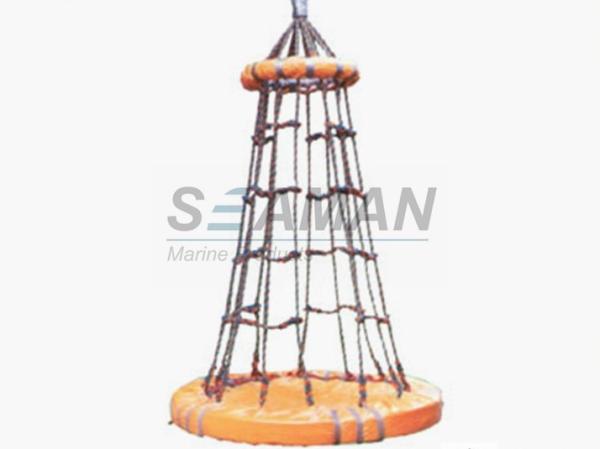

    ABS Offshore Personnel Transfer Net ( Basket ) HY Series Marine Transfer Device

    ABS Approval Offshore Personnel Transfer Net (Basket) HY Series Marine Transfer Device


    General Information:


    4 to 18 person transfer device is used to quickly and effectively transport personnel on and off of platforms.

    All models are equipped with quick release safety lanyards to provide safety and give the rider confidence while in transit. X-904’s are made of a sturdy and very durable aluminum skeleton that encompasses the rider to protect them from falling objects and any side impact that may occur.


    Instructions:

    1. They must only be used with suitable cranes with SWL as shown above(wire ropes);

    2. Personal using the basket must wear safety harnesses that are attached to the cage;

    3. There must be visible contact with the crane driver and banks man at all times;

    4. The banks man must be dedicated to that task;

    5. The total number of use of the lifting baskets shall not be more than 2000 times;

    6. The maximum service life is 6 months;

    7. The rope etc must be inspected prior to each use;

    8. The equipments must be regularly inspected in accordance with National Low in the country of use;

    9. The maximum wind speed during use is 7m/s.


    Specifications:


    Model

    Capacity(Person)

    Load Weight (kg)

    HY-4

    4

    340

    HY-5

    5

    425

    HY-6

    6

    510

    HY-8

    8

    680

    HY-10

    10

    850


    Photos:
