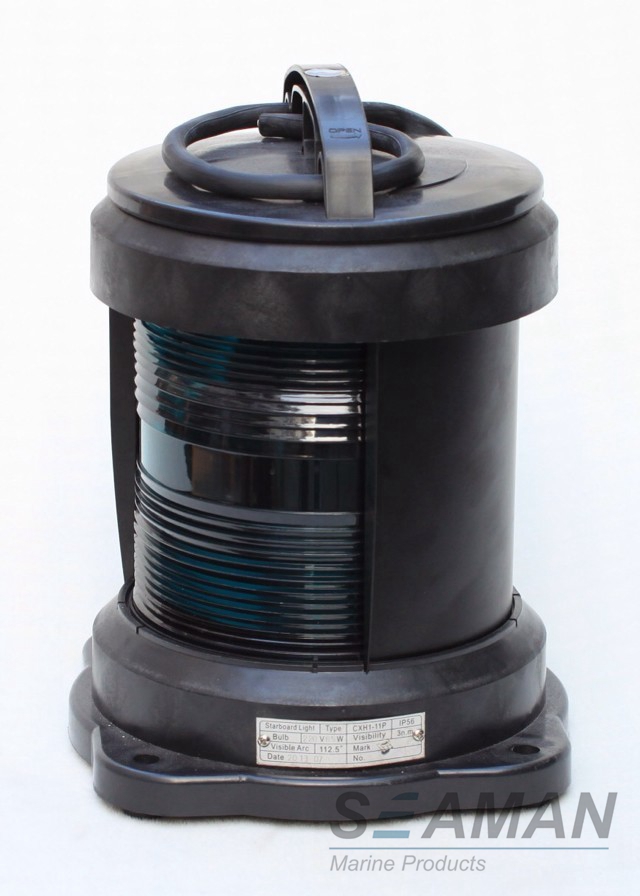

    Full Plastic SIngle Deck Marine Navigation Lights CXH Series All Round Light IP56

    Ask Lasest Price
    Brand Name : SEAMAN
    Model Number : CXH-11P
    Certification : CCS/CE
    Price : negotiation
    Payment Terms : T/T, Western Union
    Supply Ability : 2000 pcs month
    Delivery Time : 10-25 days
    • Product Details
    • Company Profile

    Full Plastic SIngle Deck Marine Navigation Lights CXH Series All Round Light IP56

    Full Plastic SIngle Deck Marine Navigation Signal Light CXH Series All Round Light


    Production authentication:

    1. Approved by the CCS(China Classification Society),approved by ZY of China Fishery Inspection. 2. Passed the authentication of CE.

    3. Approverd by Germanischer Lloyd "GL".

    4. Approved by MED/EC.


    Application


    Navigation signal light is a colored source of illumination on a waterborne vessel, to signal

    a craft's position, heading, and status

    Aplied to the ships with the length 50m or above 50m as lamp signal liaison when night navigation.


    Characteristic


    1. The shell is made of high-strength engineering plastic PA+GF, the lampshade adopts injection

    of PC, lens hood adopts good quality stainless steel.

    2. The signal lights have the whole seal structure, it is waterproof under the bad environment.

    3. The signal lights choose the special signal bulb which conform to the ship norm,regulation,

    it can replace bulb when open up cover.

    4. The signal lights can work normally under the temperature -30°C~ 55°C.


    Standard:

    Confirm to < THE INTERNATIONAL REGULATIONS FOR PREVENTING COLLISION AT SEA>

    <GRADE ENTRY NORMS FOR STEEL SHIPS>

    Confirm to IEC60598-1-2008

    Confirm to the Standard of marine electric signal light’s technical condition GB/T 3028-1995


    Specifications:


    Voltage24V110V220V
    Power60W60W65W
    luminous intensity60cd
    Lamp holderP28S
    Protection classIP56
    Cable outside DiameterΦ9

    NameTypeVisibilityLevel arcColorWeight
    starboard lightCXH1-11P3n.m112.5°Green3.2kg
    port lightCXH2-11P3n.m112.5°Red3.2kg
    masthead lightCXH3-11P6n.m225°White3.2kg
    stern lightCXH4-11P3n.m135°White/Yellow3.2kg
    all-round lightCXH6-11P3n.m360°Red/Green/White3.2kg
