Lifeboat Light Life Jacket Light Position - Indicating Strobe
Lights
Decription:
BSW9812 is position-indicating strobe light.
It is designed especially for the life boat. It is fixed on the top
of the life boat to provide a stable, effective and timely relief
for the light signals, to provide accurate eye-catching protection.
It has a good funcation of High-low temperature stable;
Water-proof;Anti-oil;Flame-retartant;Anti-corrosion.
The lighting performance in line with MSC by MSC. 81 (70)
resolutions. It has been China Classification Society (CCS)
approval.
There are three kinds of the position-indcating strobe lights.
BSW9812C strobe(Always)
BSW9812H strobe (halogen)
BSW9812X Strobe (Xenon lamp)
Product Standard
according to the new standards amended in 1996,and all of their
properties are complied with the standards of the “safety of life
at sea”(SOLAS) (1974) amended in 1996.
Installation
1, The battery into the battery bonding column in Punta bag;
2, Showing the position lamps installed in the raft outside the
Punta column to the top;
3, Within a lighting installed in the raft or the vertical column
column Peng Fang
4, Pull the switch or the Department of the Peng-chu, and the life
raft floating tire rope at the bottom
of the appropriate column.
5, lithium battery shell particles of imported ABS material die
casting has good oil and anticorrosion,
rubber die casting lamp part is, there is a good waterproof
shockproof effect.
6, the power part of the adoption of good performance of the
lithium battery ER34615, can be -30 ℃
+65 ℃ environment in the normal discharge
7, The Ministry of imported lamp light-emitting LED chip, LED and
driver circuit board and the
regulator circuit board, so that can play a good battery
utilization, can extend the battery life and light
effects (light-emitting frequency of 50-70 times per minute)
Main Technical Specifications
| Specification |
| Outside light intensity | > 4.3cd | flash rate: | 50-70times/min |
| Inside light intensity | >0.5cd | color of light: | White |
| Working time: | >12h | out size | 72×38.8×41mm |
| Working Voltage: | 3.6V | Weight | 305g |
| LED power | 0.5W, 120mA | Capasity of battery | 13Ah |
| temperature range: | -30~65 | Waranty | 5 Years |
| water temp range | -1~30 | Light Battery | ER34615M |
Feature:
- Fire-resistant, Oil-resistant, Mould-proof, Corrosion-proof,
Water-proof, Dust-proof
- Cheaper Price
- CCS approval

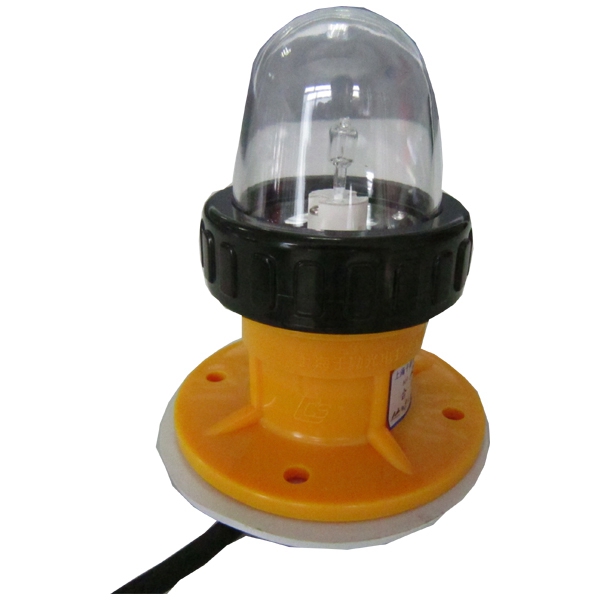

Products photos
