Solid Floating Pvc Oil Containment Boom With Balast Chain And
Shackle For Sea Environment Protection
DESCRIPTION:
Solid-floatation PVC oil containment boom is economic and general
propose boom for encircling
spilt oil and other floaters on water. It is especially suitable
for permanent deployment and widely
used at pond, lake, river, harbor and offshore petroleum platform.

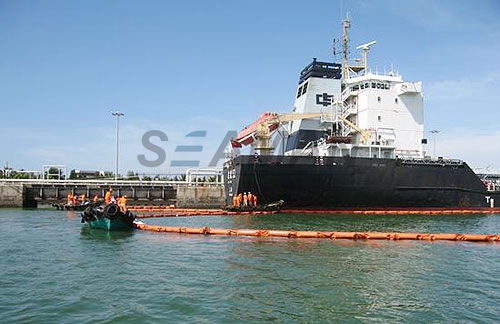

The PVC Floating Oil Containment Fence Boom is a quick response
unit used in harbors, ports, marinas, docks and other loading
areas. Manufactured with flat foam flotations, these booms are
designed to float around spills and prevent the spread of oil and
other hazardous liquids.
STRUCTURE:
1. Boom's membrane is PVC double-face coated reinforced fabric.
2. A top ridge rope, middle reinforced belts and a bottom balance
chain on boom sections bear the
longitudinal load, and form concaves both at the skirt in water and
at the flexible sections above
water when boom is in a current.
3. There are flexible sections between cross beam like floaters.
4. Easily connect boom sections, which are 20m long.
5. Every section has anchor seats.
Main Specifications:
Model Parameter | SMOB-450 | SMOB-750 | SMOB-900 | SMOB-1100 |
| Overall height(mm) | 450 | 750 | 900 | 1100 |
| Freeboard(mm) | 150 | 250 | 300 | 400 |
| Draft(mm) | 300 | 500 | 600 | 700 |
Standard Length Per Section(m) | 10,20 |
Tensile Strength
(KN) | 20 | 30 | 40 | 45 |
| Ballast | Block or chain |
| Weight(Kg/m) | 3.1 | 4.2 | 5.2 | 5.8 |
| Storage rack for 60m | 2.8*1.7*0.7 | 2.8*1.7*1.0 | 2.8*1.7*1.2 | 2.8*1.7*1.4
|
Features:
·Made of the high strength fabric coated with the bright orange
PVC, having high resistance to oil, seawater corrosion and UV
radiation. The solid float in the unique shape makes it more easily
to storage. There is a force-withstanding element each in the upper
and lower parts of the boom body to ensure more strength. Elastic
stiffeners are provided between solid floats to keep the oil fence
straight and stiff and ensure an effective draft.
The deployment and retrieval of the PVC fence is very simple. The
oil fence can be supplied with the hydraulically driven reel frame
or the hanging rack.
